Hydraulic Oil Press Machines
Five standard models from 325 to 620 tons pressing force. Plus special-purpose machines for sesame, coconut/VCO, and large-batch industrial applications. Every machine handles hot press and cold press. Built for 30+ types of oil seeds.
Why Choose a Hydraulic Oil Press?
- Hot press AND cold press on the same machine โ no need for two separate machines
- Higher oil yield than expeller/screw presses for many seeds
- Lower operating temperature = better oil quality and nutrition retention
- No high-speed rotating parts = minimal wear, low maintenance cost
- External hydraulic station = easy access for maintenance and repair
- Customizable barrel size for your specific seed type
- Nickel-plated barrels available on HN426+ models
Full Specifications โ All Models

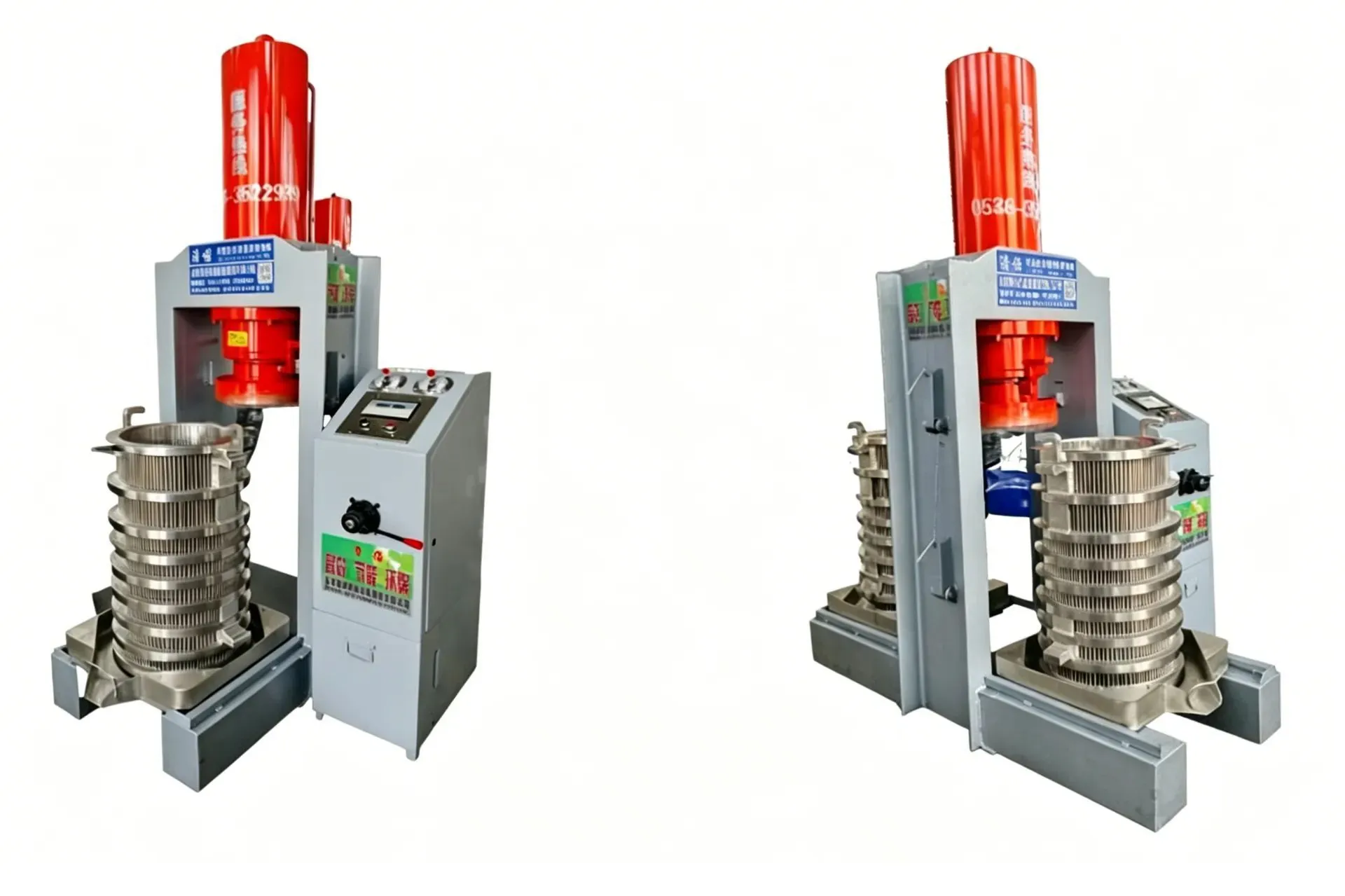

Hydraulic Oil Press Machine (HN325)
Our best-selling model. 325 tons at 60 Mpa. Ideal entry-level press for sesame, tea seed, rapeseed, peanut, soybean. 27.78 Mpa cake pressure extracts most materials in one cycle.

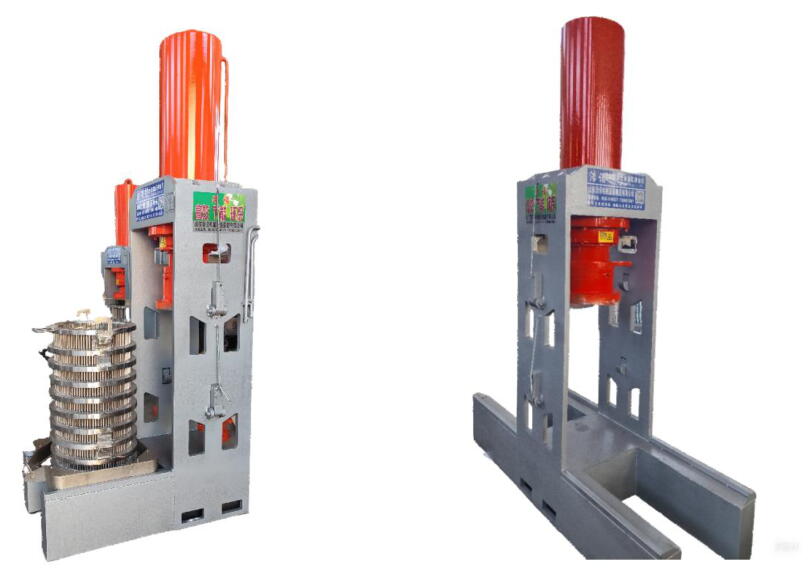

360 Ton Hydraulic Press (HN355)
Mid-range upgrade. 360 tons at 63 Mpa with larger 280mm piston. 30.15 Mpa cake pressure handles harder shells better than HN325. 30mm steel plate frame.
500 Ton Cold Press Machine (HN426)
500 tons at 70 Mpa. The cold-press specialist. Can handle walnuts (in-shell), apricot kernels, tiger nuts, yellowhorn. 42 Mpa cake pressure โ highest mid-range.

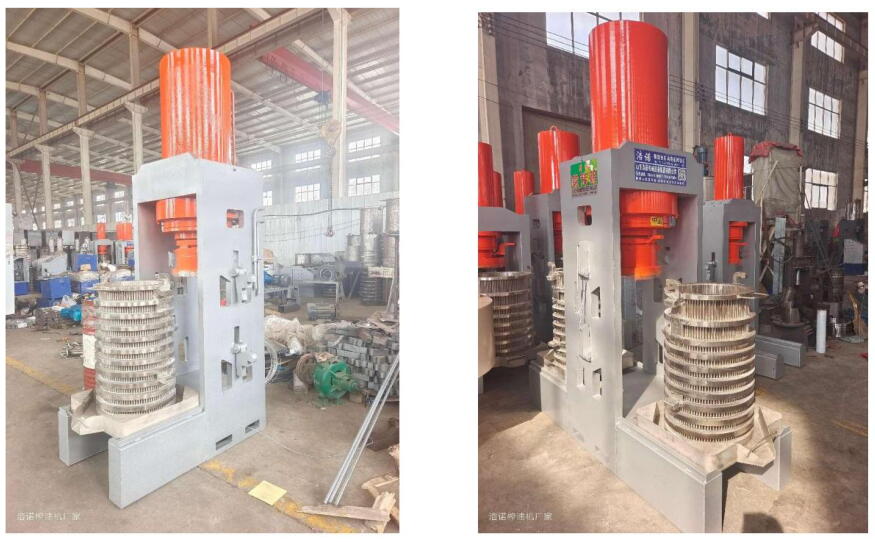

Hydraulic Oil Press Machine (HN500)
620 tons at 75 Mpa. 50mm frame plate. 52 Mpa cake pressure โ maximum in our range. For industrial-scale operations demanding absolute maximum extraction.
All models: 850mm cylinder stroke (customizable), dual-barrel sliding rail option, external hydraulic station. Barrel sizes customizable: 390mm standard, 300mm sesame, 630mm large capacity. Nickel-plated on HN426+. Contact us for custom configurations.
Special Purpose Oil Press Machines
Sesame Oil Press Machine
Custom 300mm barrel. 47-51 Mpa cake pressure. 32.5โ50 kg per batch. Hot or cold press. Proven in Ethiopia, Tanzania, Sudan markets.

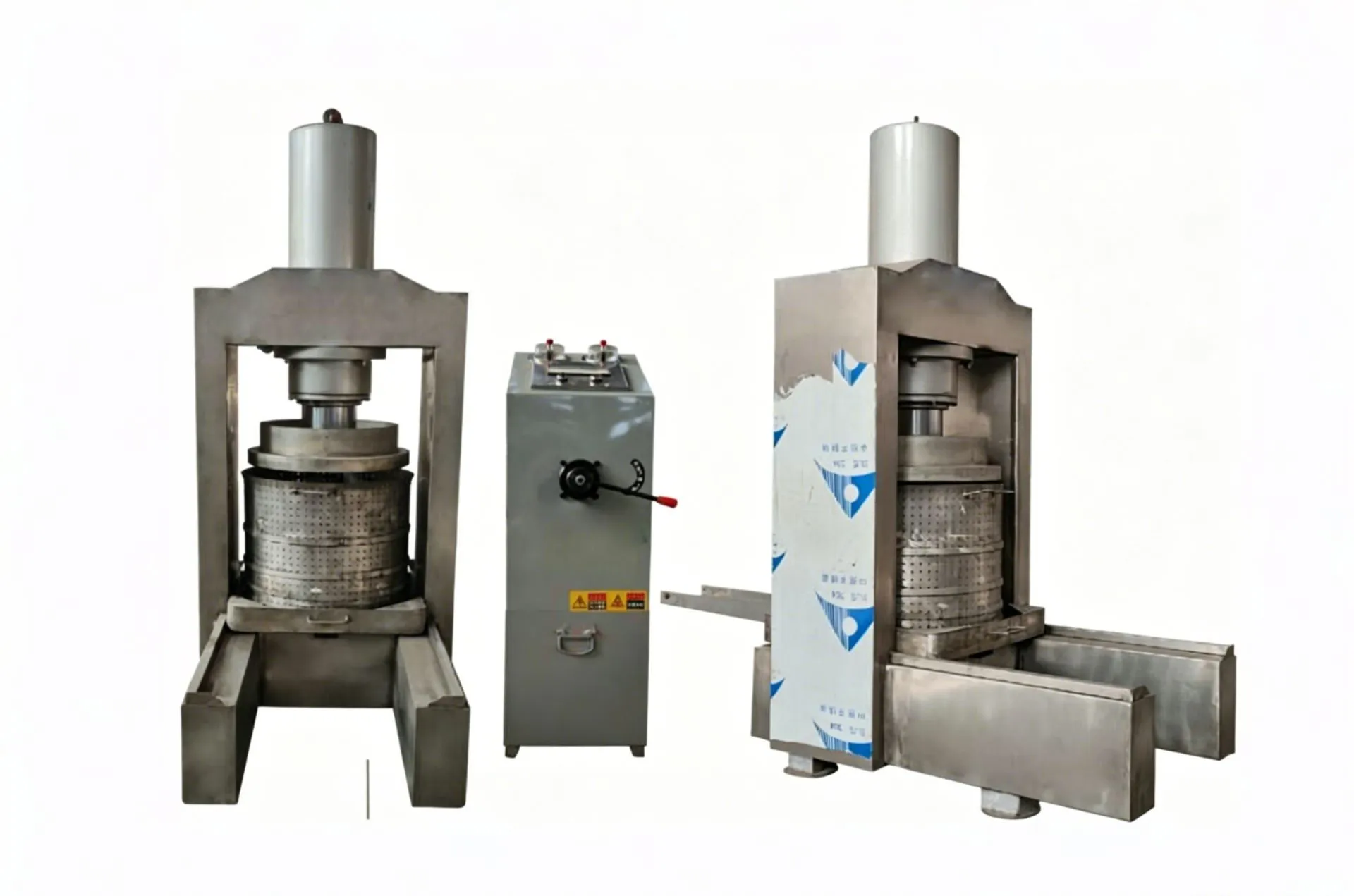

Coconut Oil Press Machine (VCO)
304 food-grade stainless steel body and barrel. Virgin coconut oil + milk + juice on one machine. Philippines, Indonesia, Thailand markets.

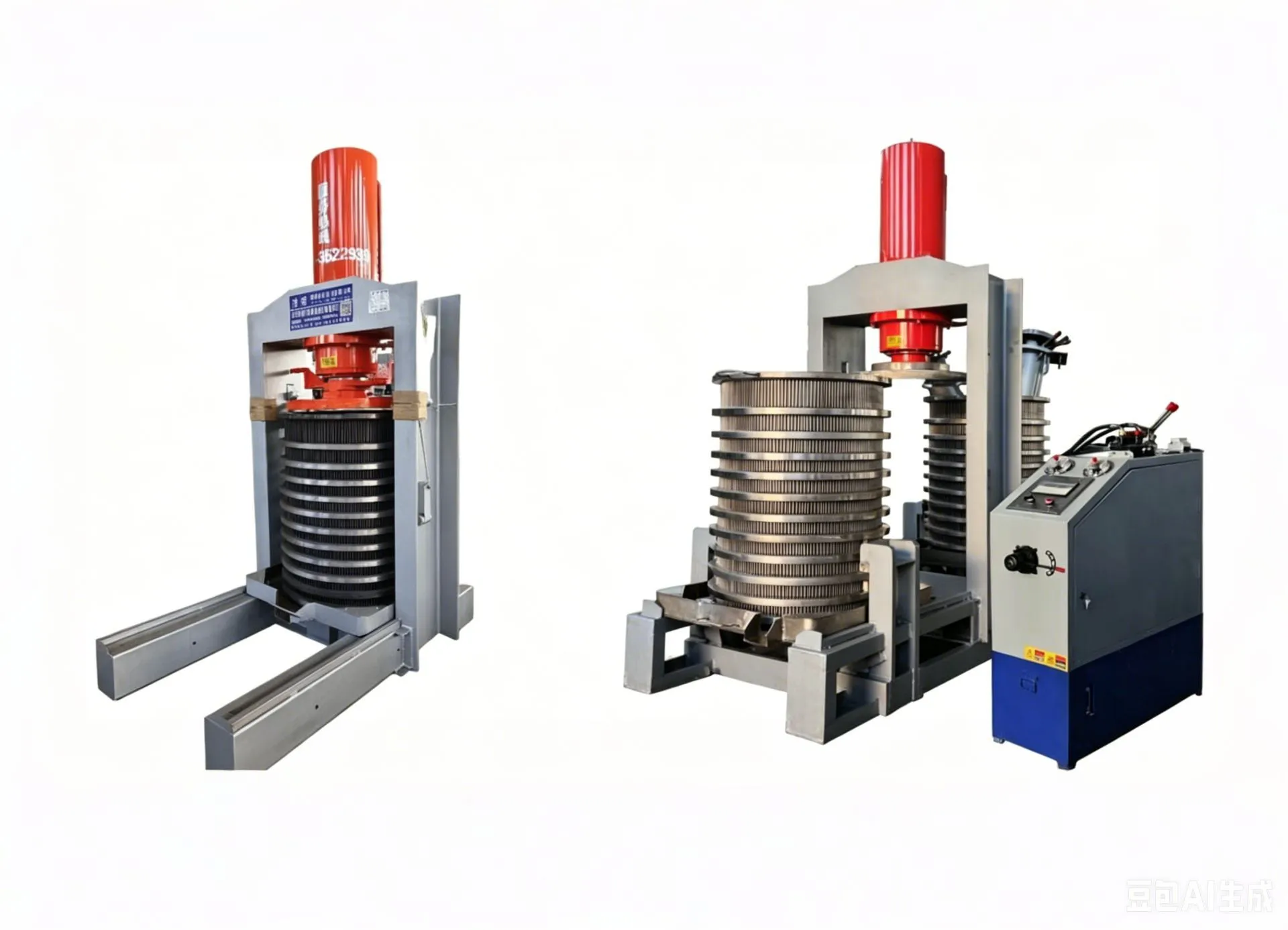

Large Capacity Oil Press Machine
630x1000mm extra-large barrel. Dual hydraulic systems. Top-ejection cake ejection design. For oil sludge, textile sludge, fruit/vegetable dehydration.
How to Choose the Right Model?
| Question | HN325 | HN355 | HN426 | HN500 |
|---|---|---|---|---|
| Budget-sensitive? | BEST VALUE | Good | โ | โ |
| Pressing soft seeds (sesame, tea seed)? | YES | YES | Not necessary | Not necessary |
| Pressing hard shells (walnuts in-shell)? | Works OK | Works OK | YES | BEST |
| Maximum oil yield matters? | Good | Better | Excellent | MAXIMUM |
| Daily output >500kg/day? | Consider dual-barrel | OK | YES | BUILT FOR IT |
| Cold-pressed walnut oil needed? | Not recommended | Not ideal | Recommended | Ideal choice |
| Limited floor space? | Most compact | OK | Larger | Largest footprint |
Pick Your Seed Oil Press Machine
Choose by what you're pressing. Each seed has its recommended model and process.
Sesame Oil Press Machine
Hot press or cold press. Custom 300mm barrel. Ethiopia, Tanzania, Sudan market proven.
Groundnut / Peanut Oil Press Machine
40-45% yield. Cake sells as feed. Nigeria, Ghana, Senegal markets.
Mustard / Rapeseed Oil Press Machine
Kachi ghani or full hot press. India, Bangladesh market specialist.
Coconut Oil Press Machine
304 stainless steel. VCO and milk. Philippines, Indonesia, Thailand markets.
Tea Seed / Camellia Oil Press Machine
Cold press cosmetic oil at premium prices. Japan, Korea, Europe export quality.
30+ Other Seeds Oil Press Machine
Sunflower, flaxseed, walnut, castor, shea nut โ we'll find your match.
